This content looks at the following.

Internet access
Wired networks
Wireless networks
Extended wireless networks

Photo of Jeff Myers (October 26, 1953 - August 29, 2023) from March 2, 2023.

Resources include printers, web pages, databases, etc
Networks through servers are used to share resources with clients
Clients use the resources of servers.
Security is used so as not to share too much

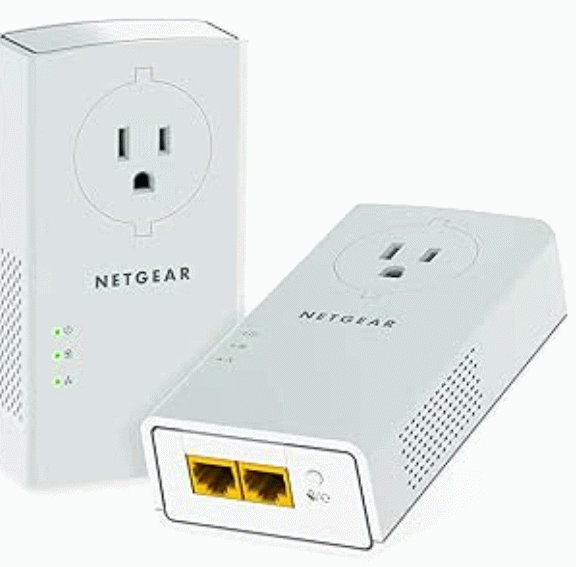

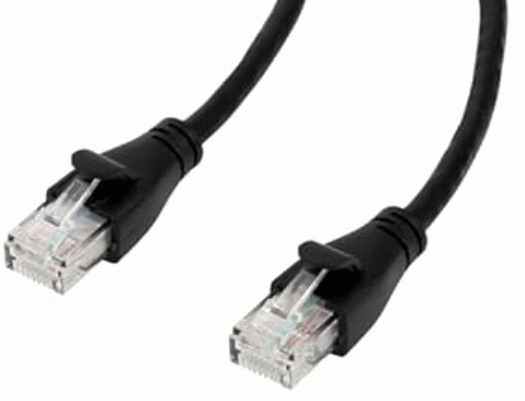

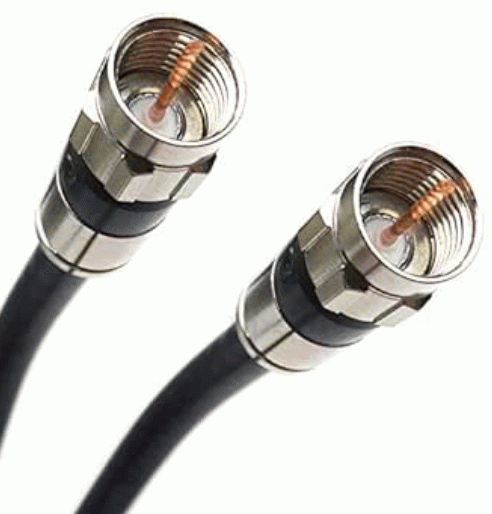

Coaxial cable	RJ-45 network cable	wireless signal	Powerline Adapter power lines within building

Wireless:

2.4 GHz
5.0 GHz

[fiber optic, microwave]
[domain name, IP address, MAC address]

2.4 GHz : wider range but slower speeds (larger spaces with more barriers)
5.0 GHz : shorter range but higher speeds (smaller spaces with fewer barriers)
Barriers: walls (concrete, plaster, etc.)

Feature	2.4 GHz Wi‑Fi	5 GHz Wi‑Fi
Frequency Range	2.4 to 2.4835 GHz	5.150 to 5.825 GHz
Channel Width	20, 40 MHz	20, 40, 80, 160 MHz
Data Rate	Up to 600 Mbps	Up to 3.5 Gbps
Channels	14 (3 non‑overlapping)	24+ (all non‑overlapping)
Interference	Higher	Lower, less crowded frequency
Compatibility	Universal	Newer

Short range wi-fi is often as fast as a wired connection (for Internet access).

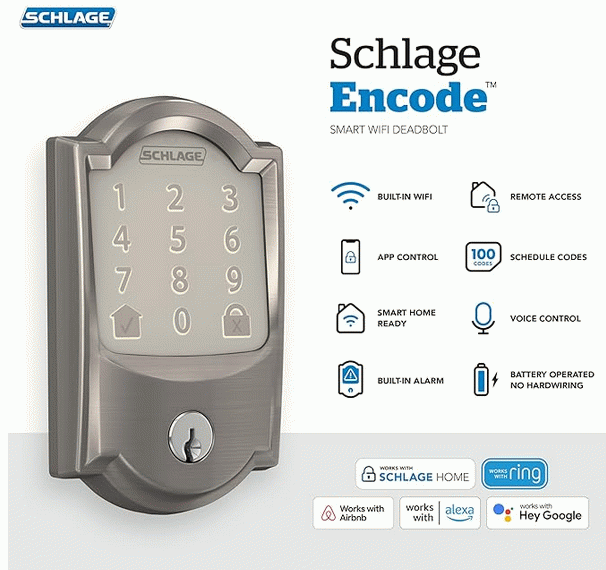

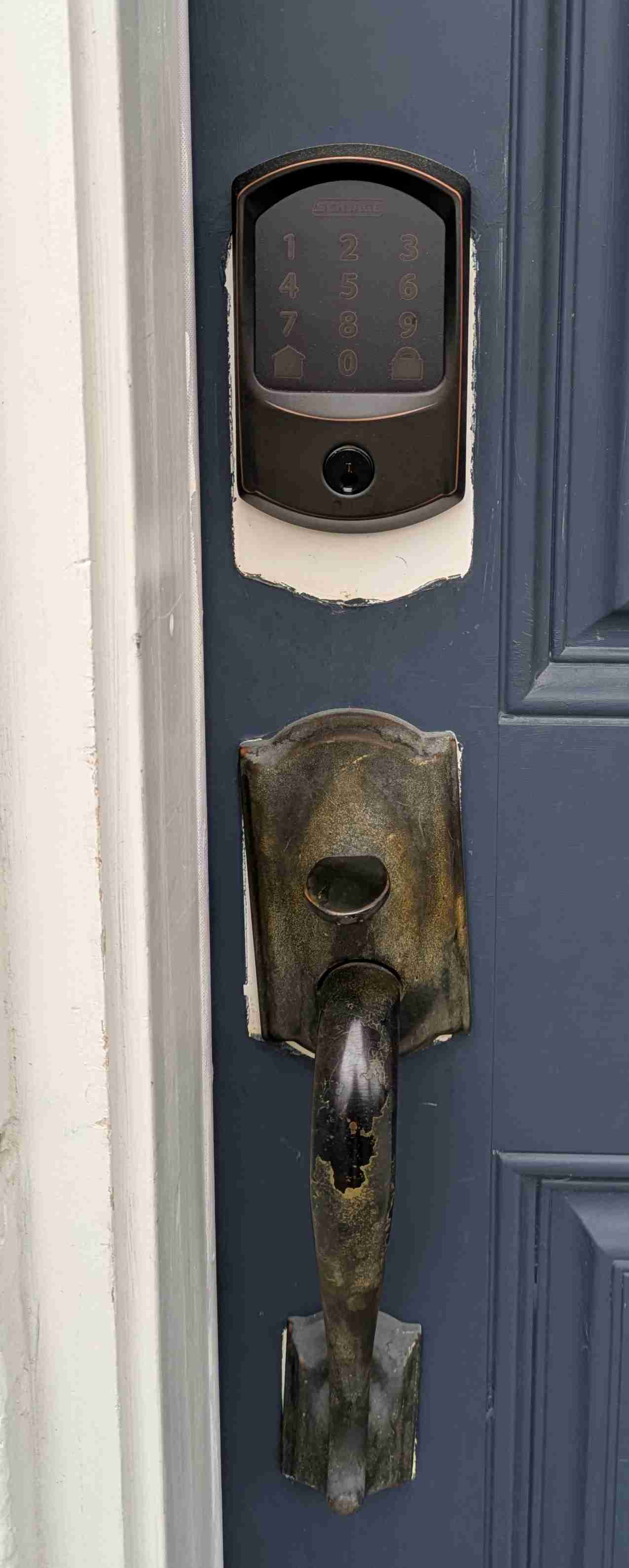

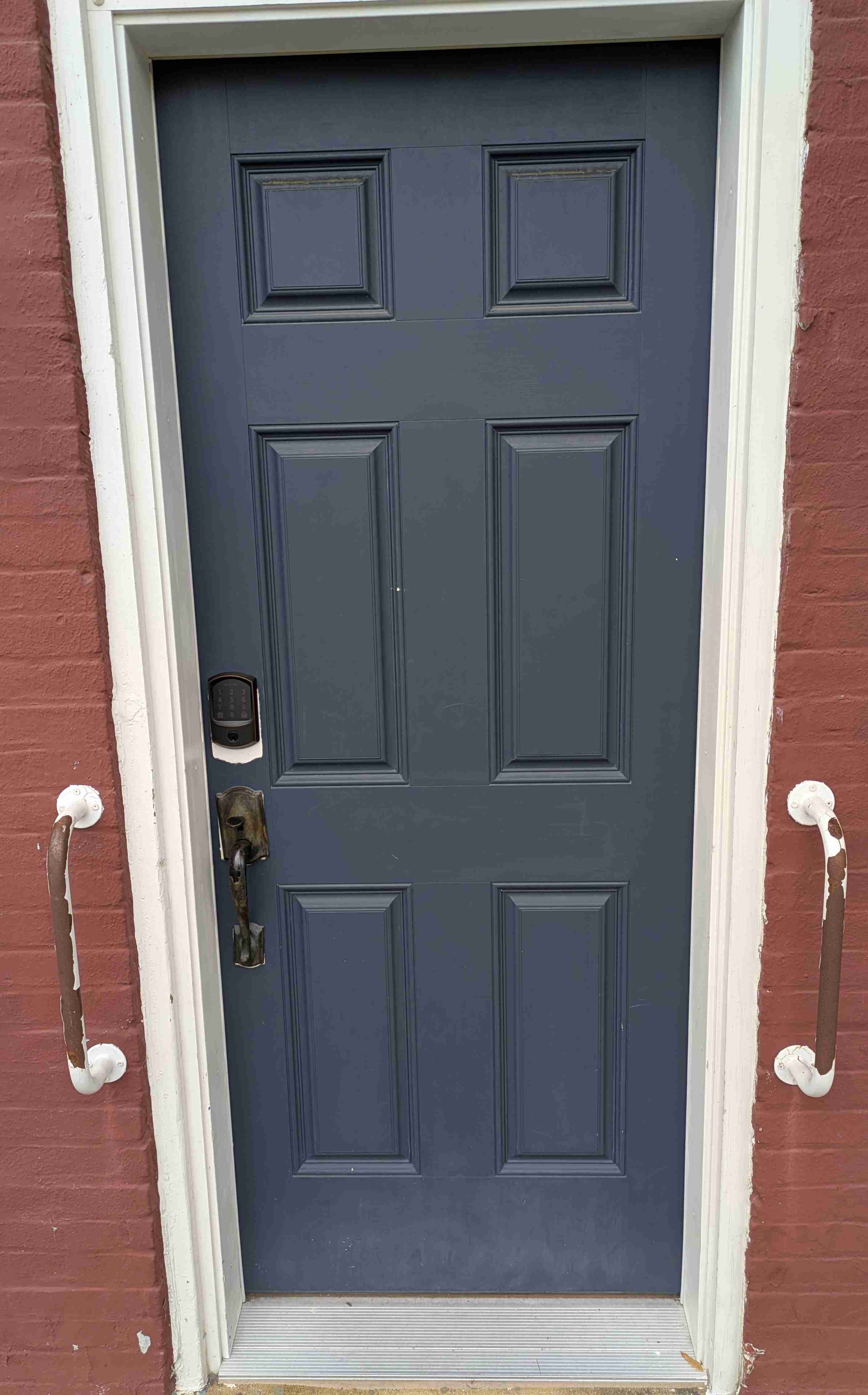

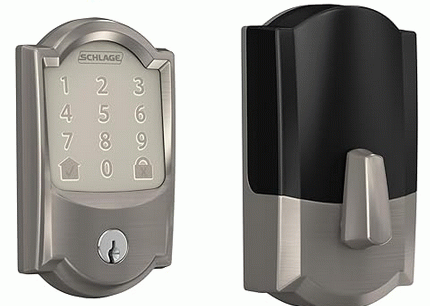

Schlage Encode Smart WiFi Deadbolt Lock for Front Door - Keyless Entry with App or Touchscreen - Works with Alexa, Apple HomeKit, Hey Google, & Airbnb - Create Codes for Guests - Satin Nickel Silver. Amazon.com. $260 (home use). (as of 2025-05-12)

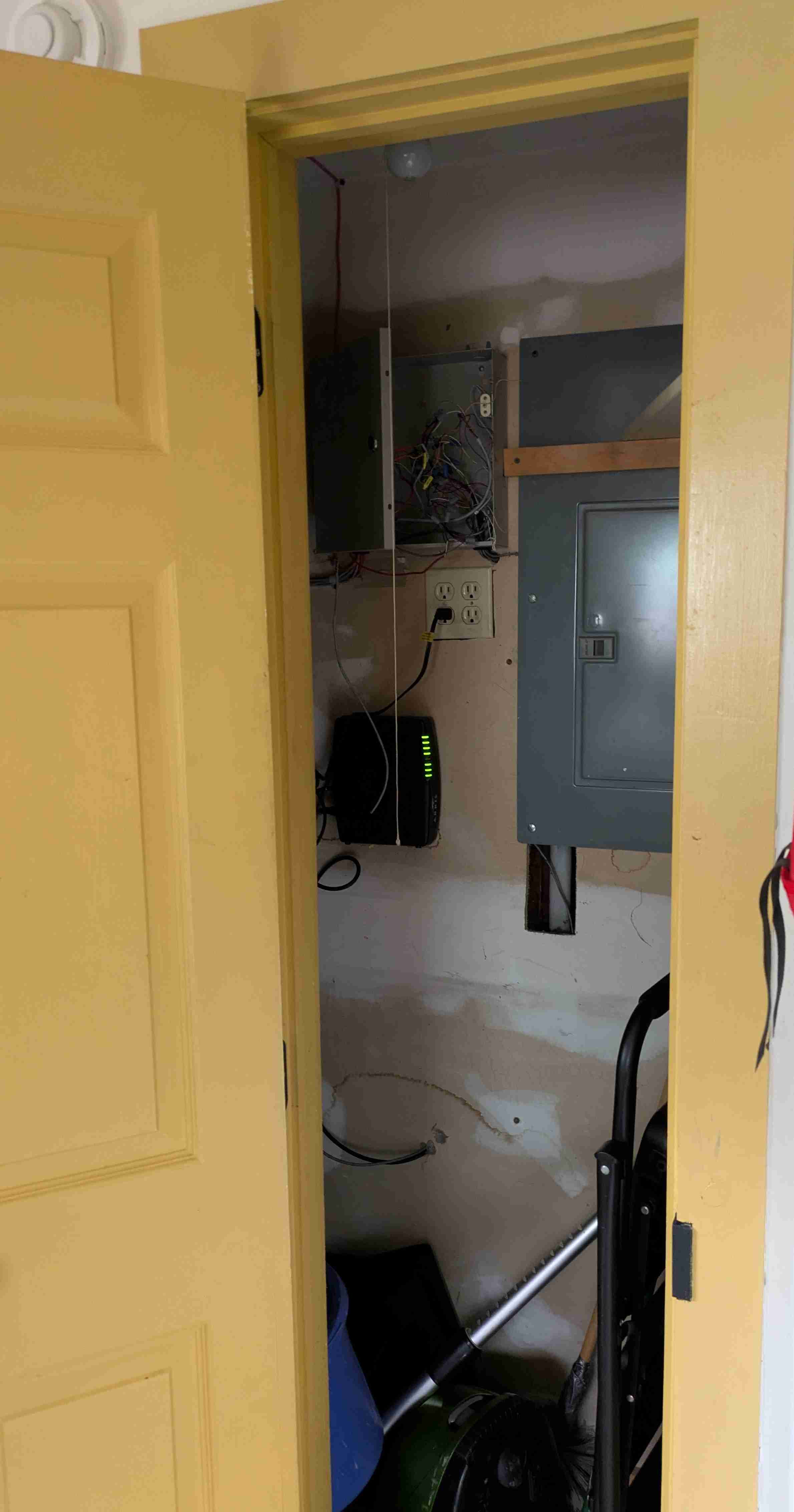

Internet is from ComCast. Cable modem in the closet connecting to ComCast Internet.

Cable line from ComCast.

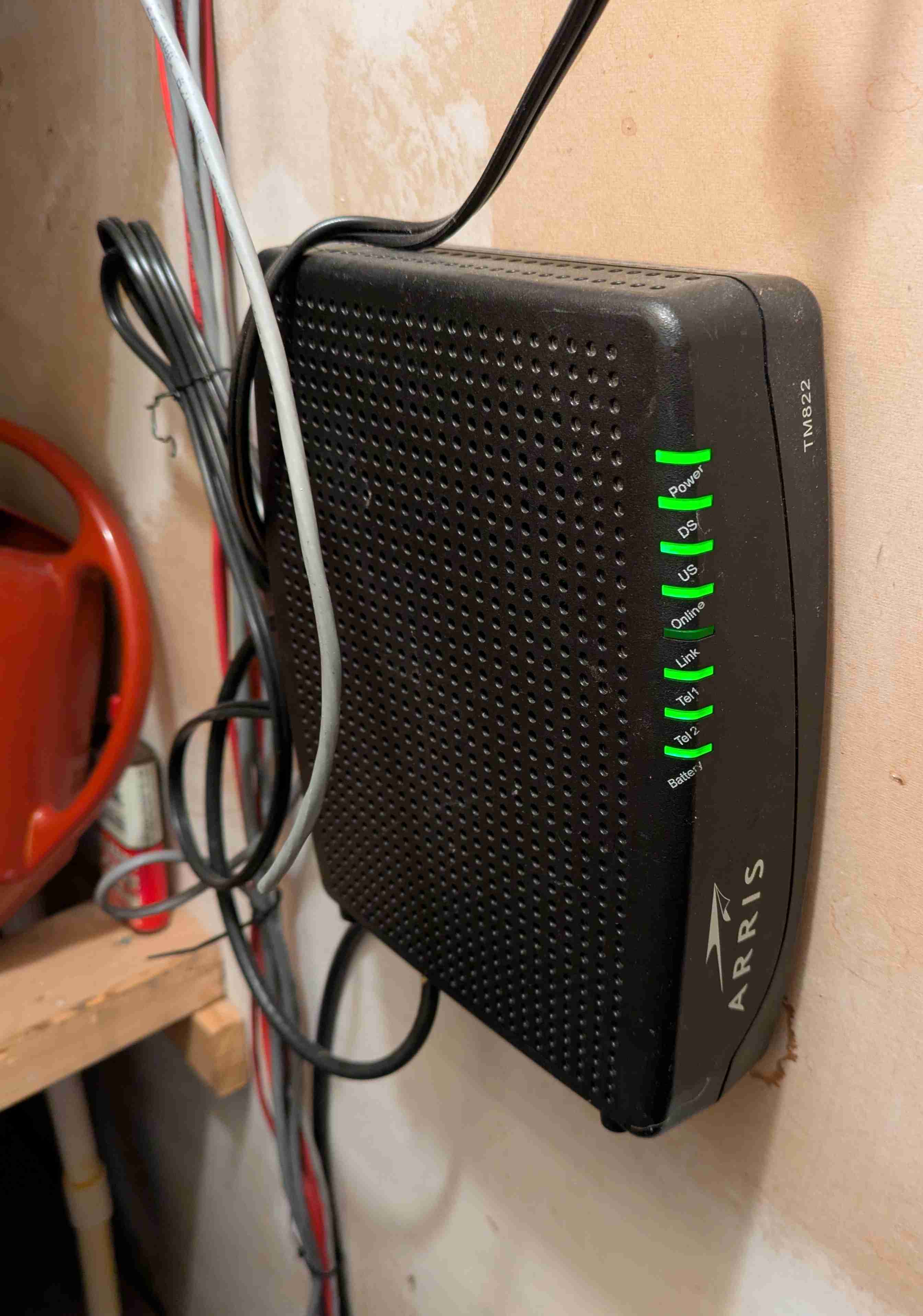

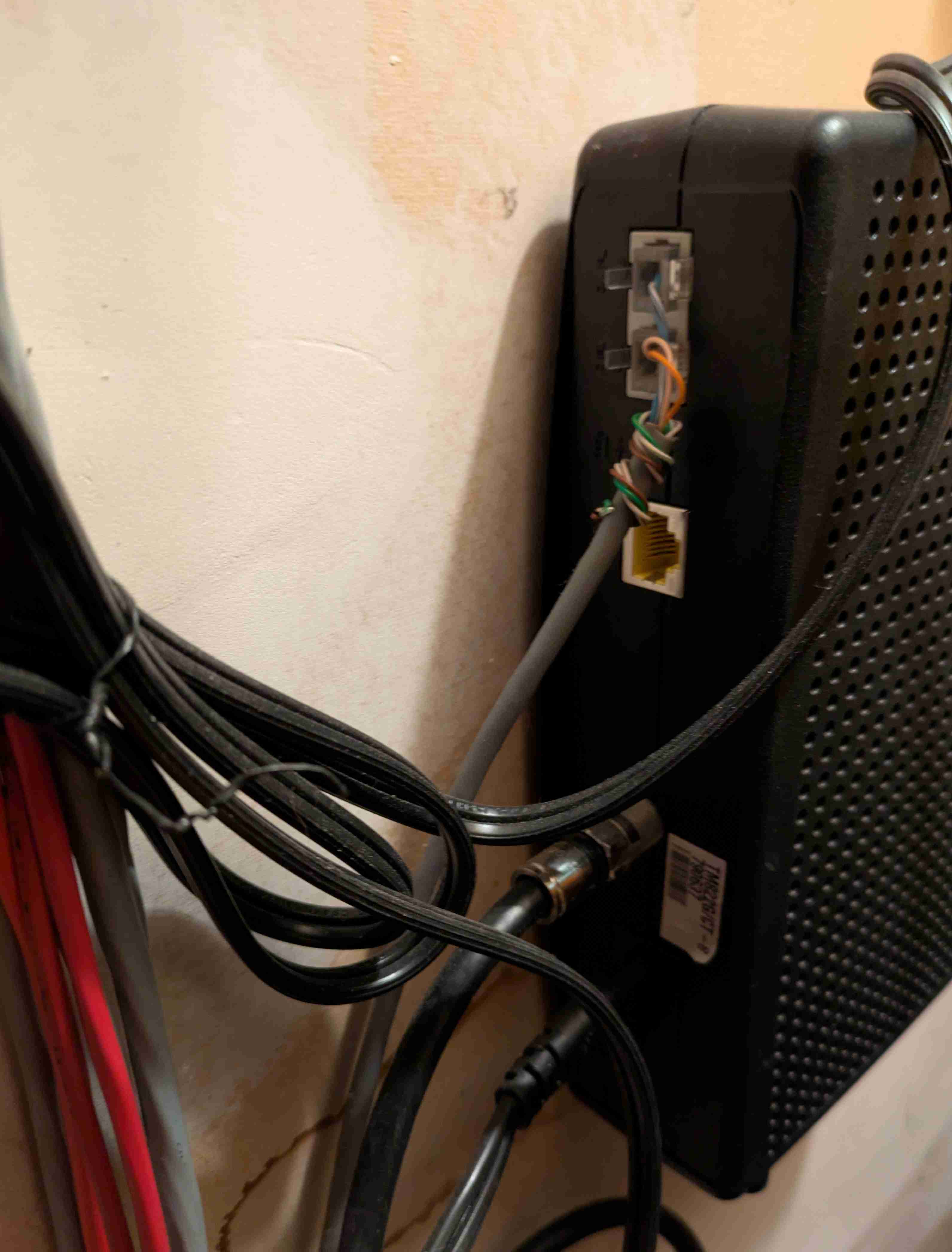

Cable modem (router) in closet.
Network RJ-45 cable to office.

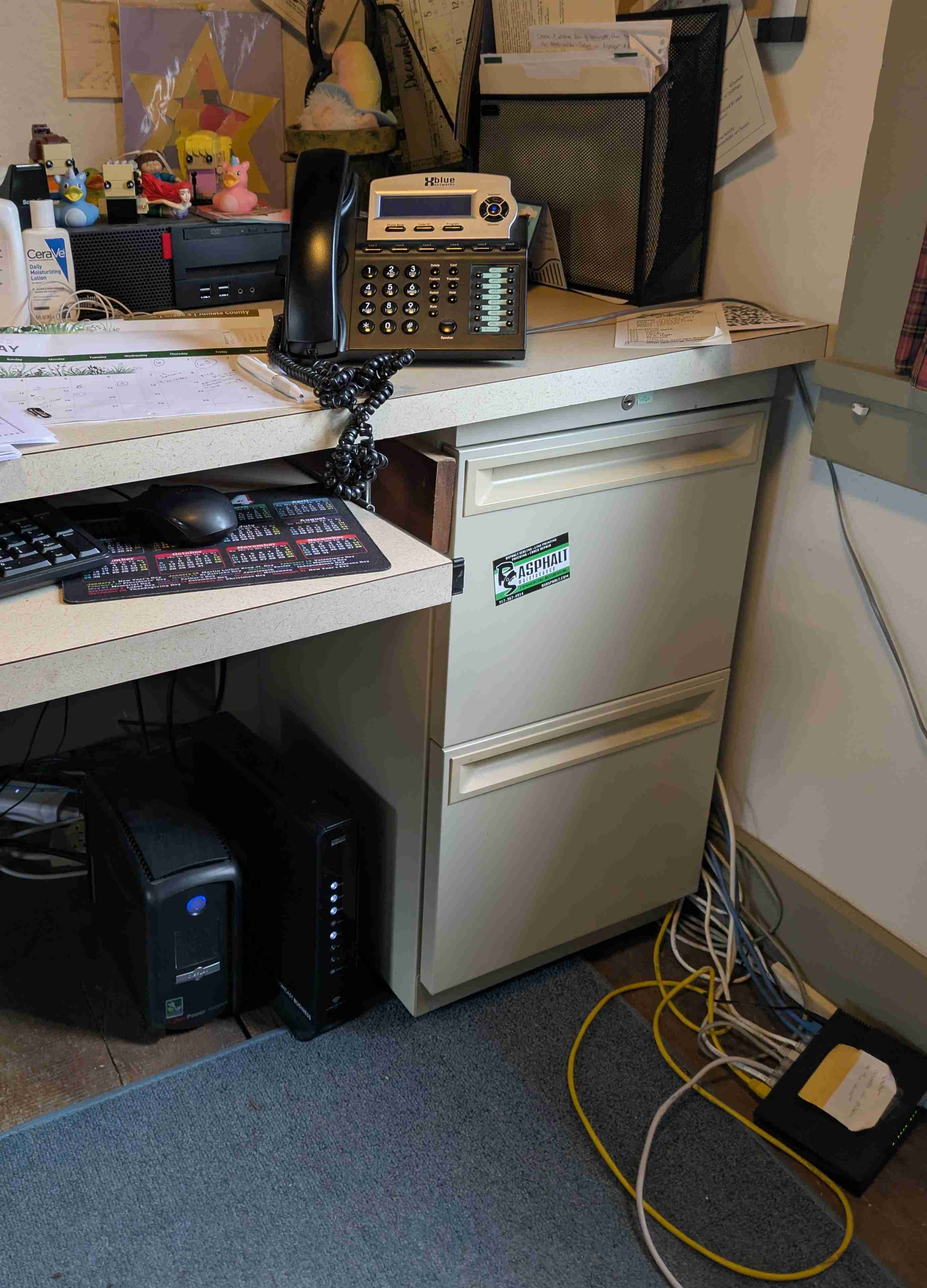

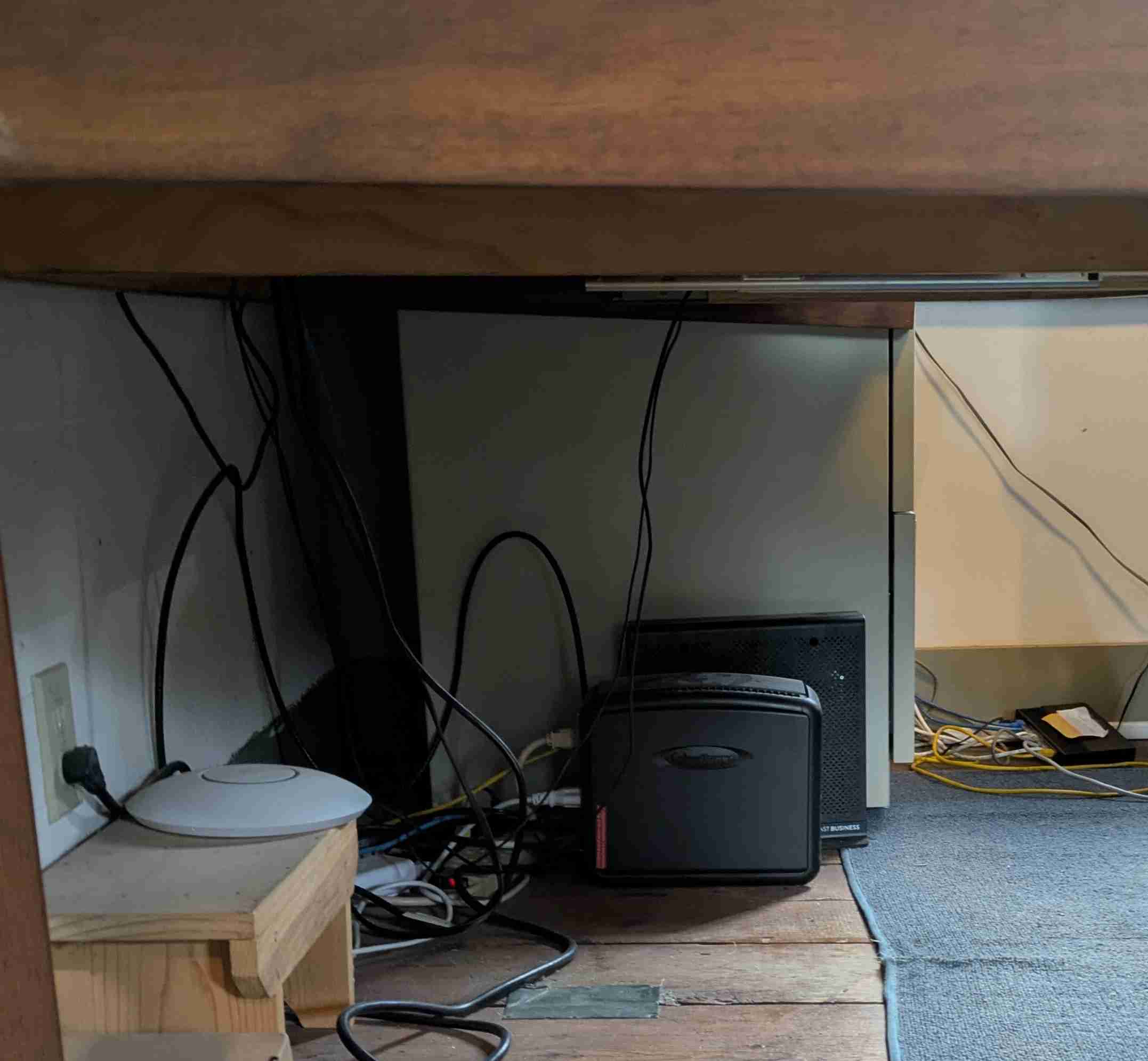

Under the disk in the office.

AP-AC Pro (Wi-Fi extension)
UPS

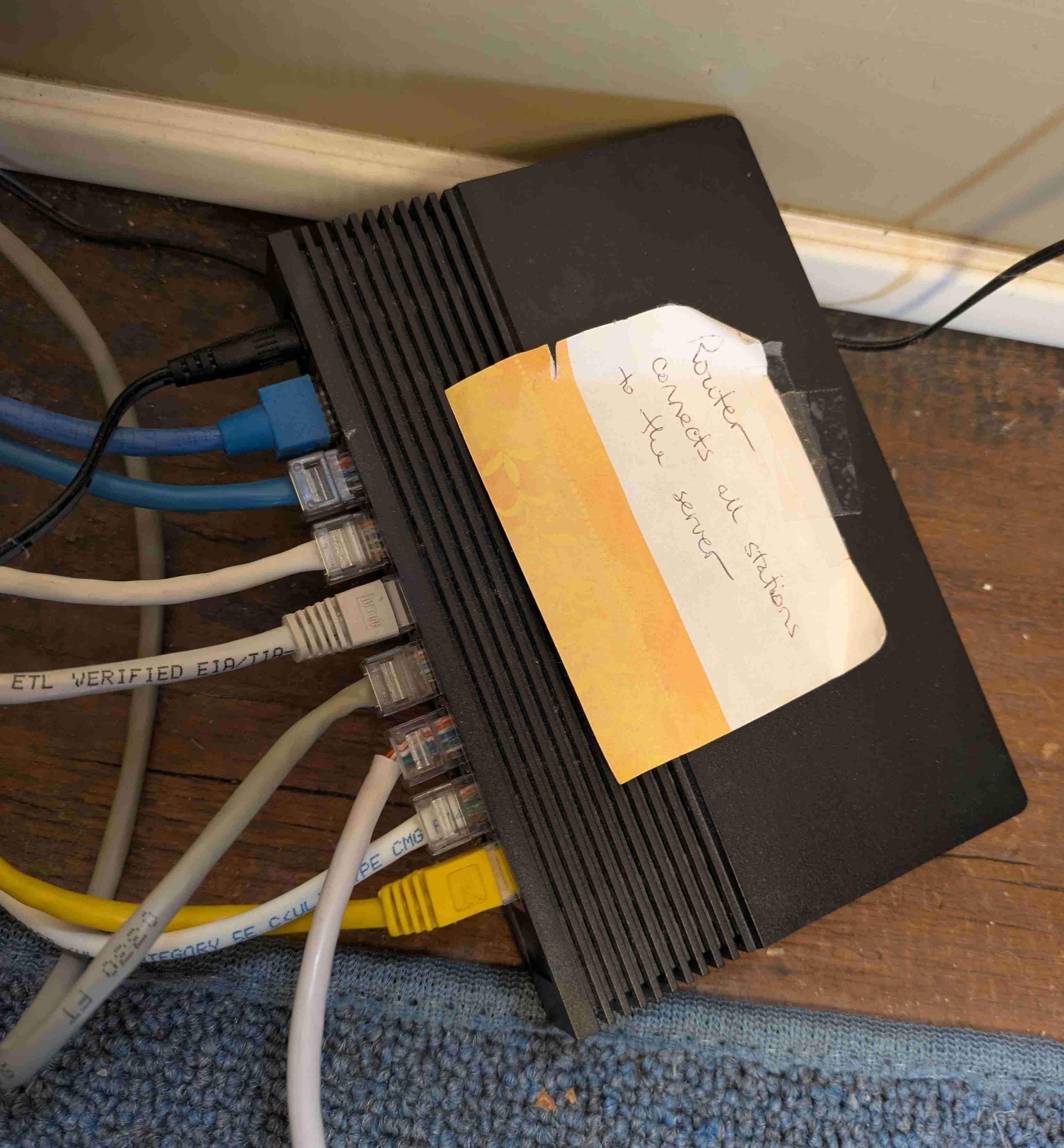

Network router

[privilege escalation attack weakness]

Network router - ComCast Business [access, password, etc.]
Wireless networks (do not appear to be used)
Wired networks
Network RJ-45 cable to library

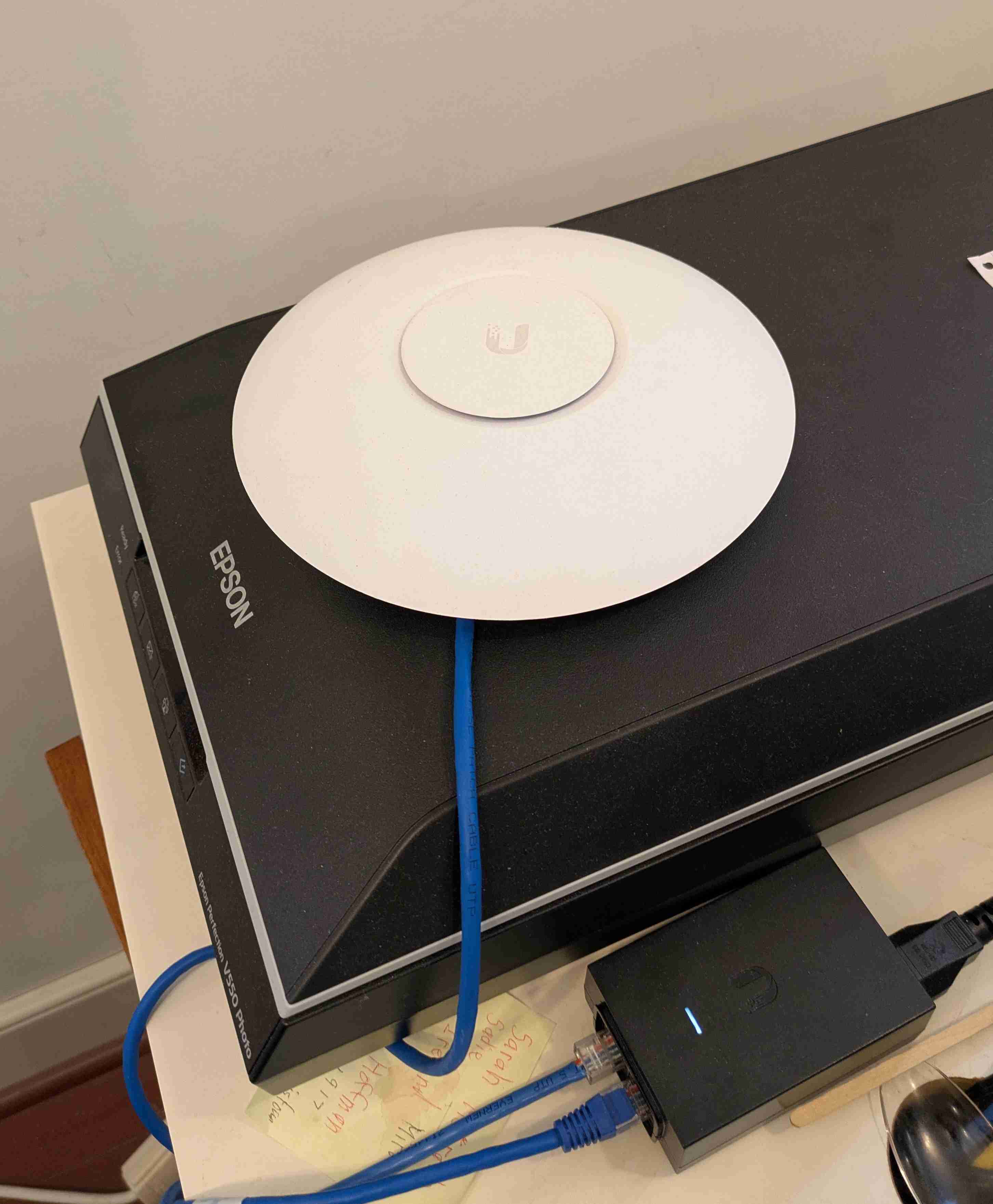

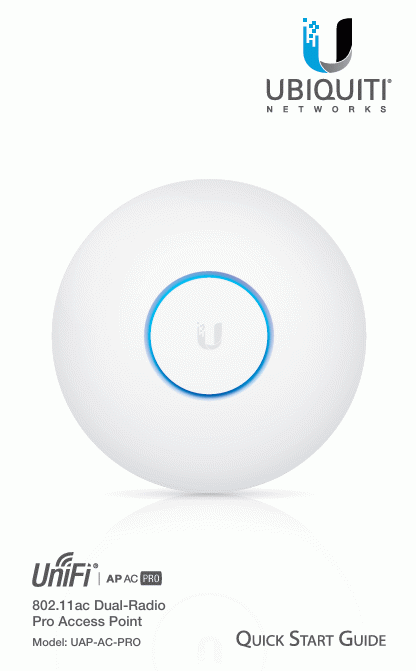

Ubiquiti Networks UniFi UAP-AC-PRO, 3dBi, 22dBm, 450Mbps, 3x3 2. 4GHz / 5GHz, 1300Mbps, 2xGigabit, 122m

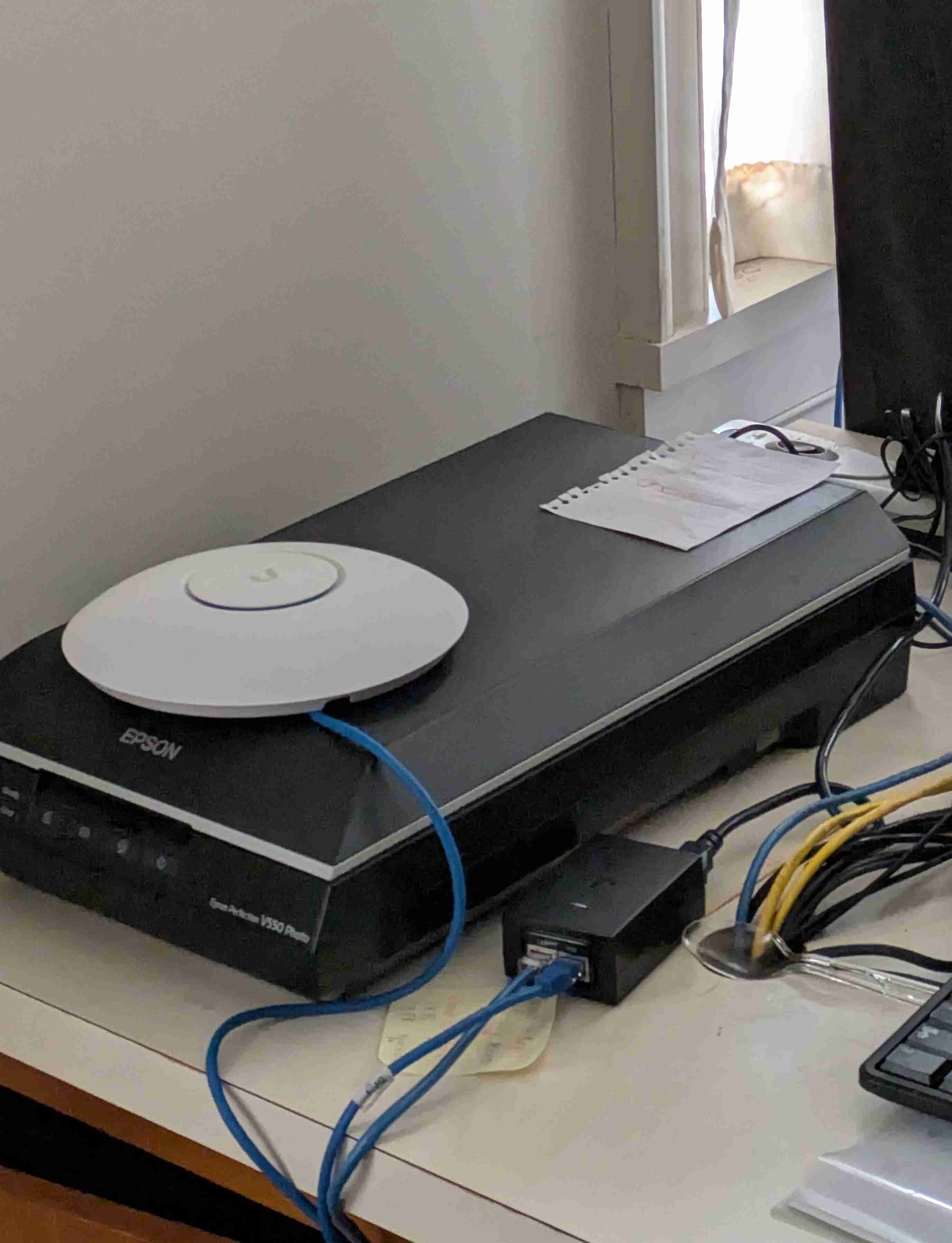

Library: Wireless extension, transparent to 10.1.10.x network.

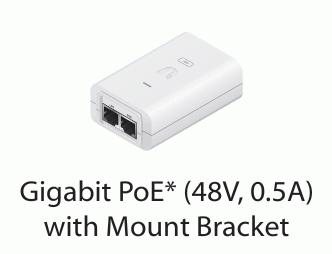

Power over Ethernet (cable)

Step-by-step instructions in the User Guide are available at: https://www.ubnt.com/download/unifi.

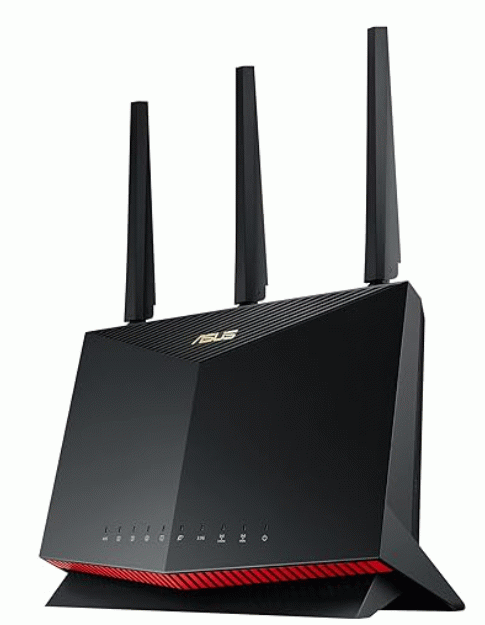

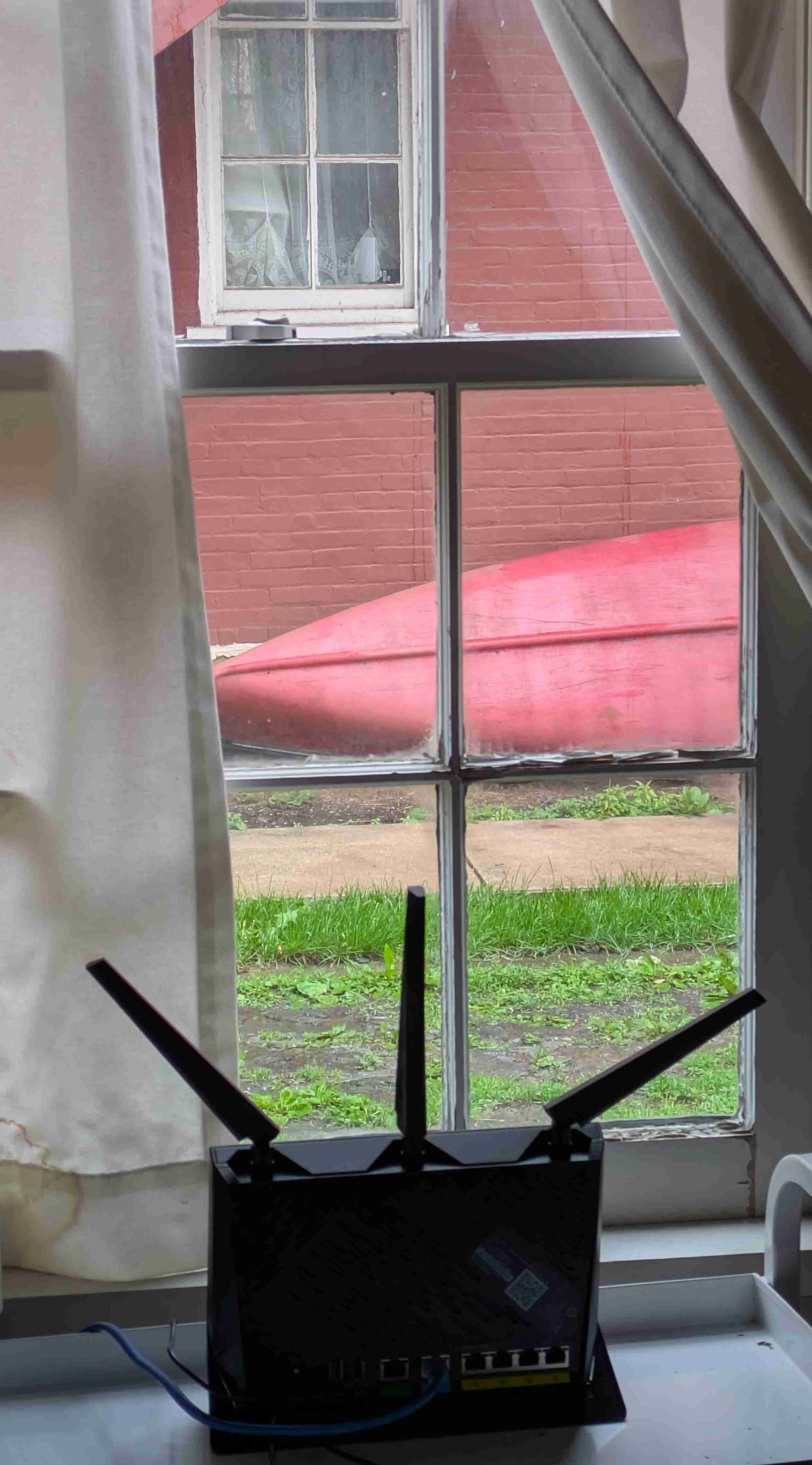

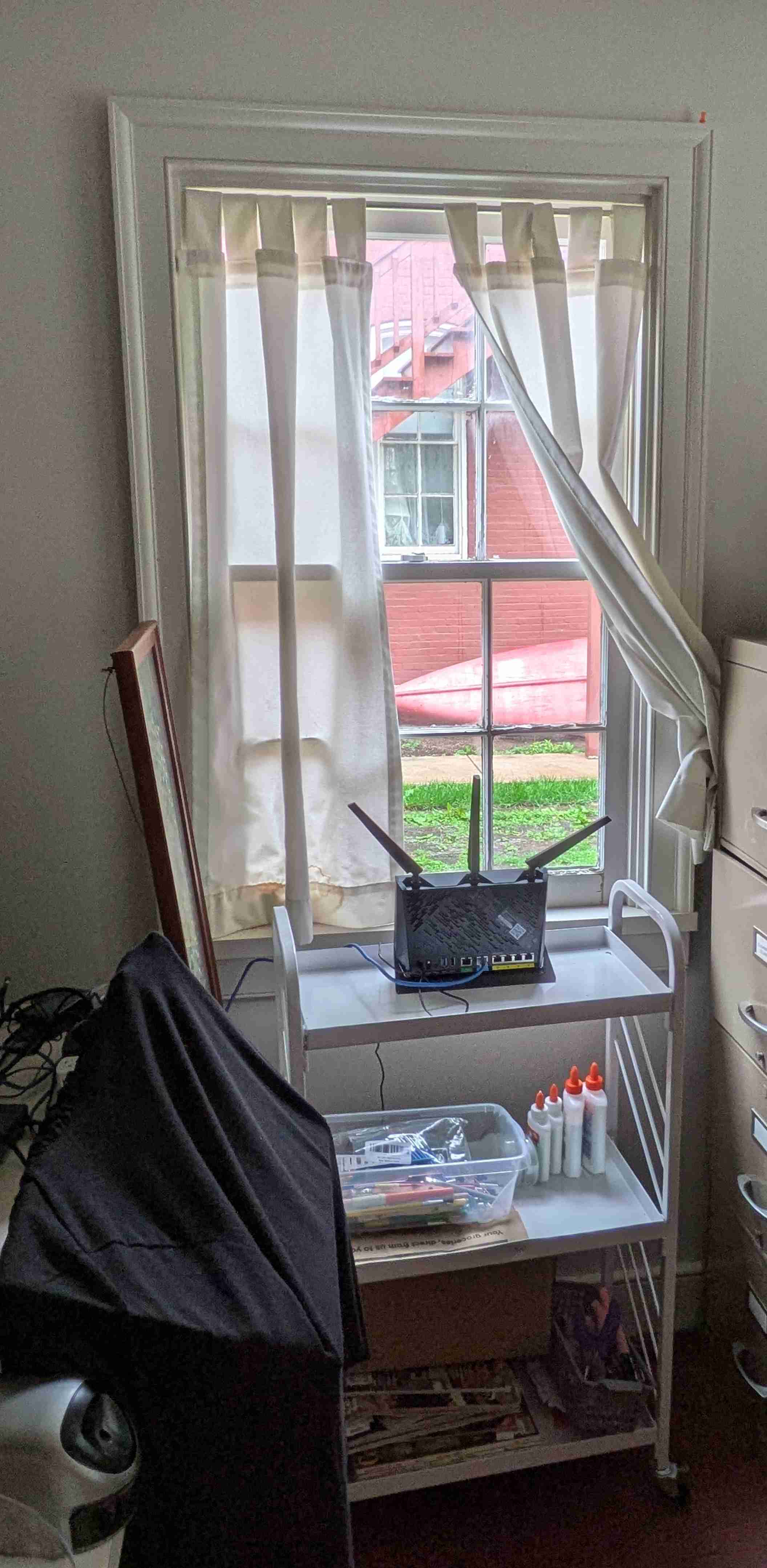

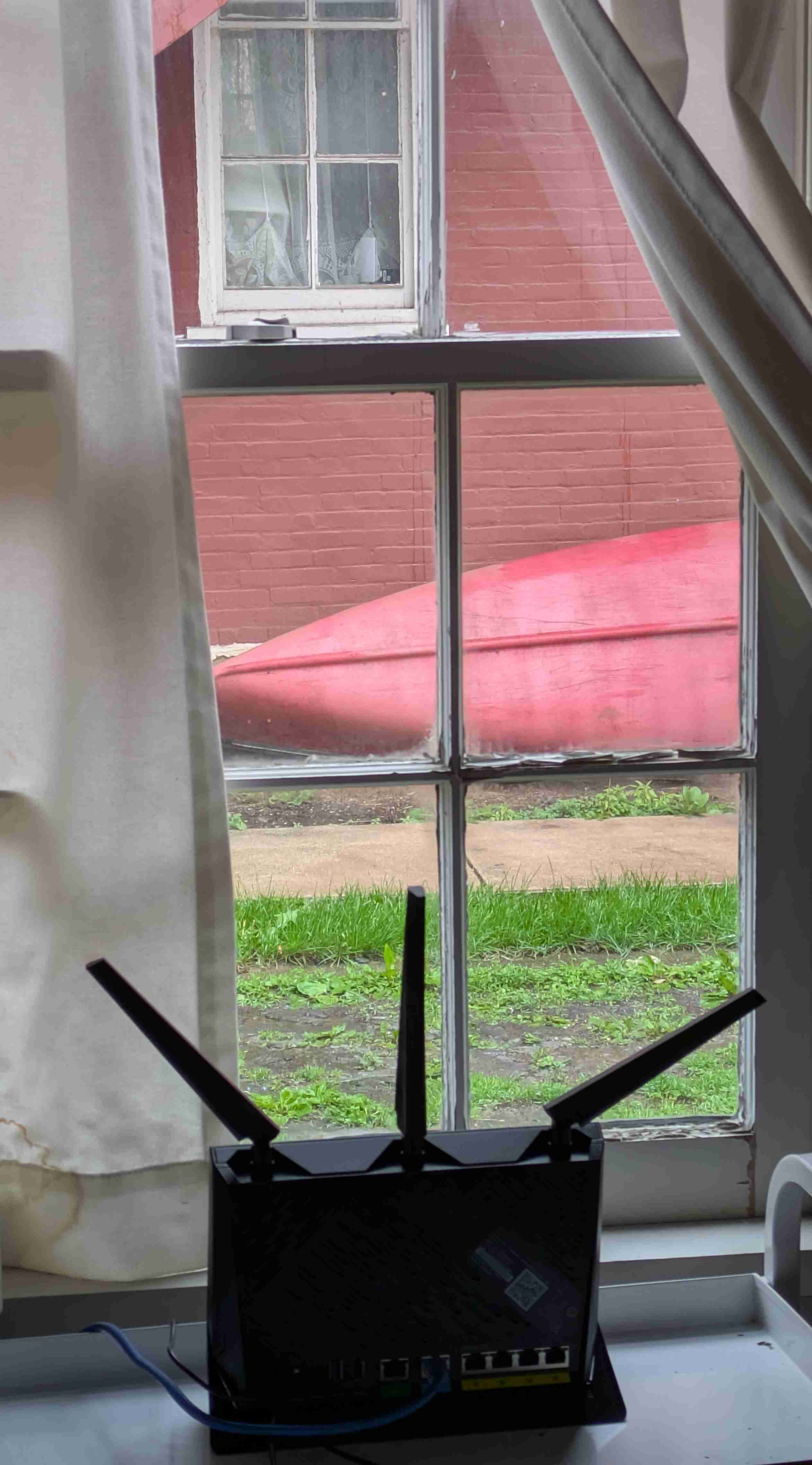

ASUS RT-AX86U Pro (AX5700) Dual Band WiFi 6 Extendable Gaming Router, 2.5G Port, Gaming Port, Mobile Game Mode, Port Forwarding, Subscription-free Network Security, VPN, AiMesh Compatible

192.168.50.x network
line of sight (through two windows)

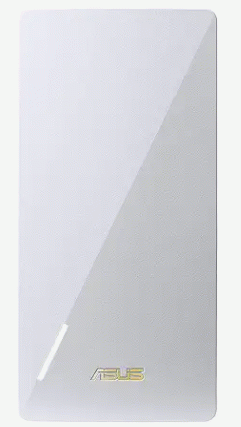

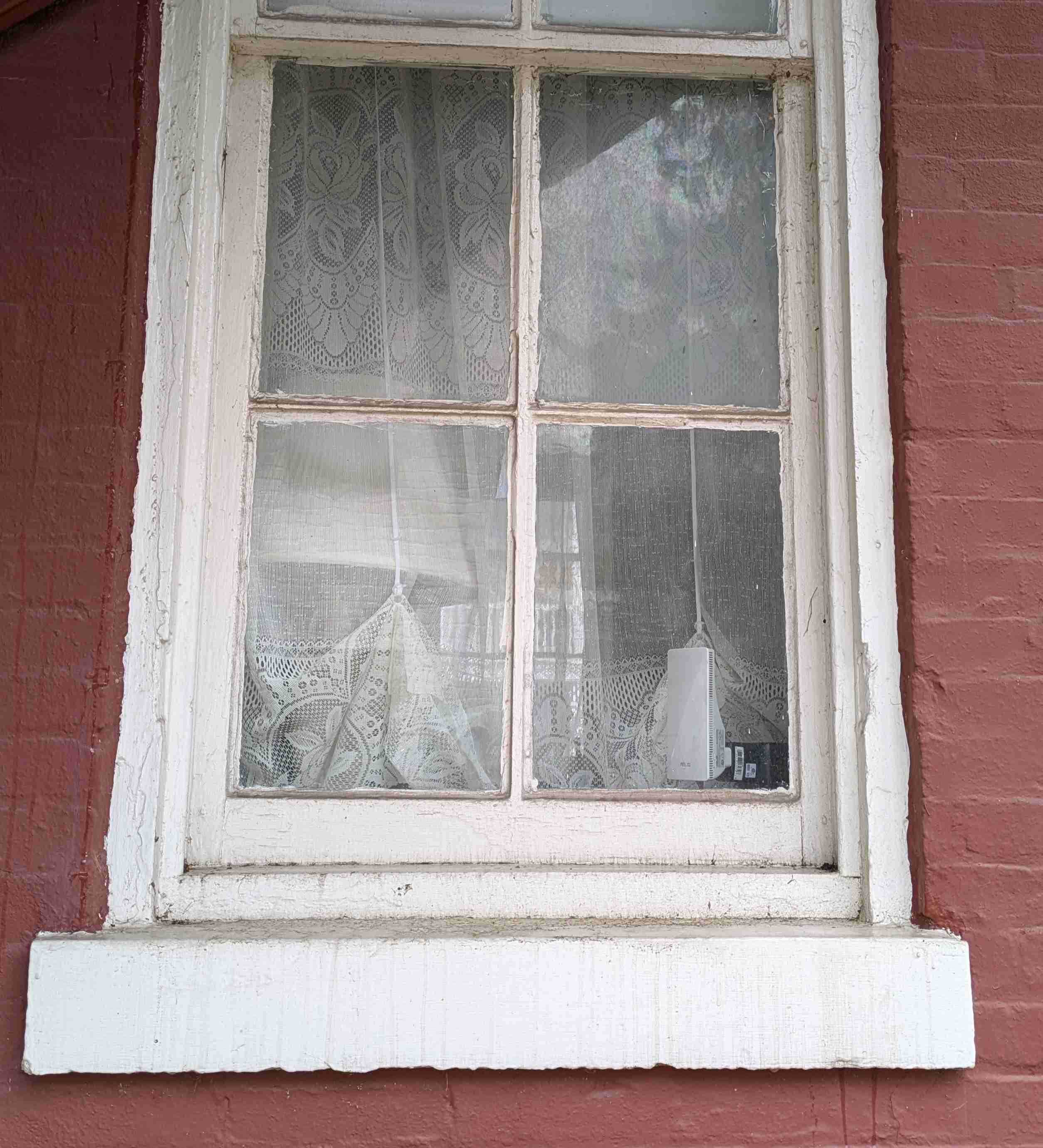

ASUS RP-AX58 AX3000 Dual Band WiFi 6 (802.11ax) Range Extender, AiMesh Extender for seamless mesh WiFi; works with any WiFi router

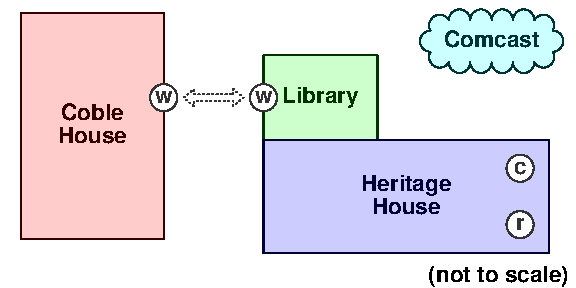

Coble House: Wireless router ASUS Aimless extension (client) at the window.

GL.iNet GL-AXT1800 (Slate AX) Portable Gigabit Travel Router, Pocket-Sized, Wi-Fi 6, Extender/Repeater for Hotel&Public Network Storage, VPN Client&Server, OpenWrt, Adguard Home, USB3.0, TF Card Slot

Coble House: Experimental extension router at the window (to be removed).

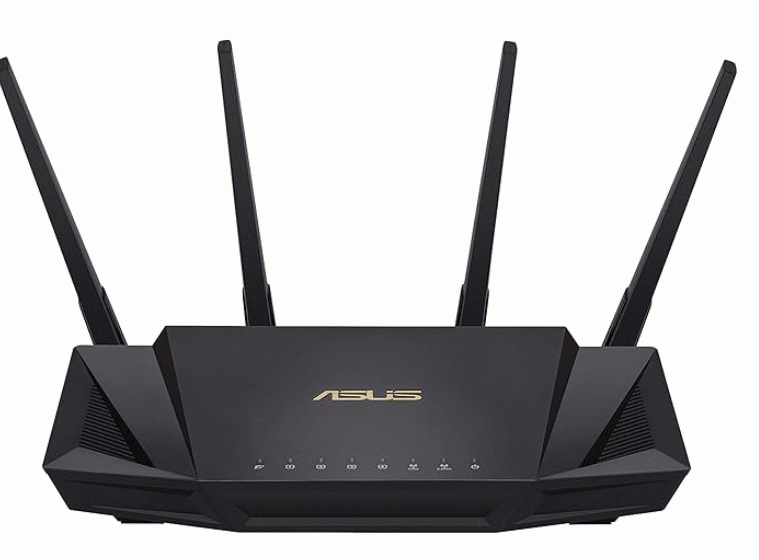

ASUS RT-AX3000 Ultra-Fast Dual Band Gigabit Wireless Router - Next Gen WiFi 6, Adaptive QoS, and AiProtection by Trend Micro | 1x WAN, 4x 1G LAN, 1x USB 3.0 - AiMesh Compatible

Library: Wireless router ASUS AiMesh network (server) at the window.

Bandwidth speed test comparison in MBPS (Mega Bits Per Second)

Router	Library	Coble House (window)	Coble House (meeting)
WHHM	270	20	10
ASUS*	590	160	100
ASUN‑X*	‑	276	200

Maximum bandwidth (wired) from ComCast is 590 MPBS.

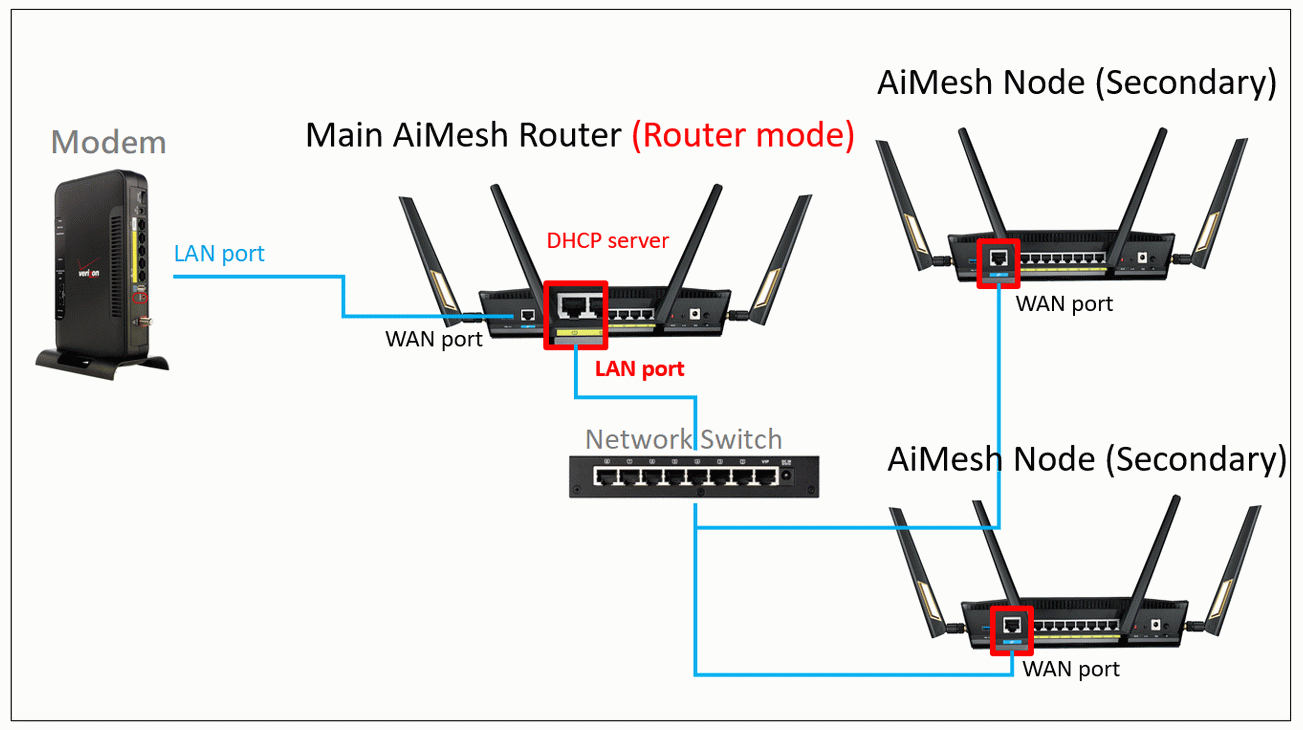

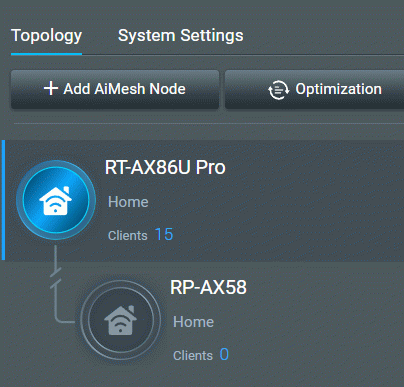

*AiMESH unified network

ComCast - max bandwidth provided (new cable modem needed?)
GUEST network (with agreement to policy page to access)
Collect and analyze usage statistics over time
DHCP (Dynamic Host Control Protocol) (access identification)
VPN (Virtual Private Network) (remote access)
Apps to monitor network strength (e.g., via Android phone)

Network details (Microsoft Active Directory, group policies, etc.)
